Bevel Contact Pattern & Backlash Tester

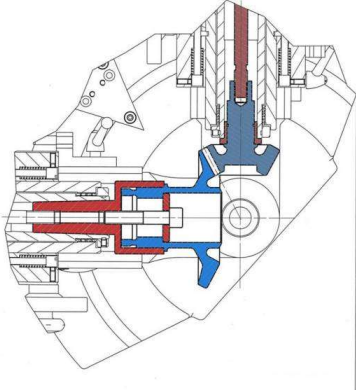

Bevel Contact Pattern & Backlash Tester This type of manual bevel gear tester was introduced by KLINGELN BERG under the model name: PKE 140 andPKE 280. This type of tester is suitable for inspection of bearing contact area and backlash on Stright and Spiral bevel gear pair. The machine scope is as below:-

• Maximum bevel gear diameter: 140 mm
• Axis angle: 50° – 140 °
• Spindle 1 : MK4
• Spindle 2 : 30 mm (straight bore)
• Maximum pitch cone distance: 90mm
• Minimum pitch cone distance : 35mm
• Maximum module : 10
• Minimum module : 0.1
