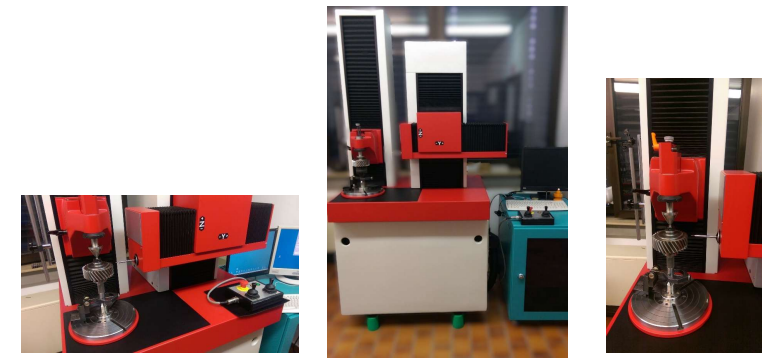

The 400mm Gear Tester is a high-precision, heavy-duty inspection system designed for evaluating medium to large-sized gears with outer diameters up to 400 mm. Engineered for quality control in high-accuracy applications, it delivers comprehensive gear performance analysis including single and double flank testing, ensuring your components meet the most demanding industry standards.
Key Features
Test Capacity: Supports gears with up to 400 mm outer diameter, ideal for automotive, industrial, and aerospace applications.
High-Accuracy Flank Testing: Performs single and double flank testing to evaluate transmission errors, composite deviations, and contact characteristics.
Rigid Machine Base: Vibration-damped and thermally stable structure ensures maximum measurement repeatability and accuracy.
Precision Spindles & Master Gears: Maintains strict tolerances and reference accuracy across a wide gear size range.
Integrated Measurement Software: Intuitive user interface for real-time monitoring, data logging, and automated report generation.
Test Capabilities
Single Flank Testing: Measures angular transmission error under simulated load.
Double Flank Testing: Evaluates total composite variation and tooth-to-tooth variation.
Flexible Testing: Accommodates a wide range of gear profiles, including spur, helical, and bevel gears.
Fast & Repeatable Results: Ideal for production line QC or batch inspection.
Compliance Ready: Fully supports international standards such as AGMA, DIN, ISO, and JIS.
Why Choose Our 400mm Gear Tester?
With a focus on performance, usability, and reliability, our 400mm Gear Tester is a trusted solution for manufacturers and labs requiring precise gear metrology. Its versatility, rugged design, and advanced software integration make it the go-to system for mission-critical gear inspection.
